Description

Core Performance & Features

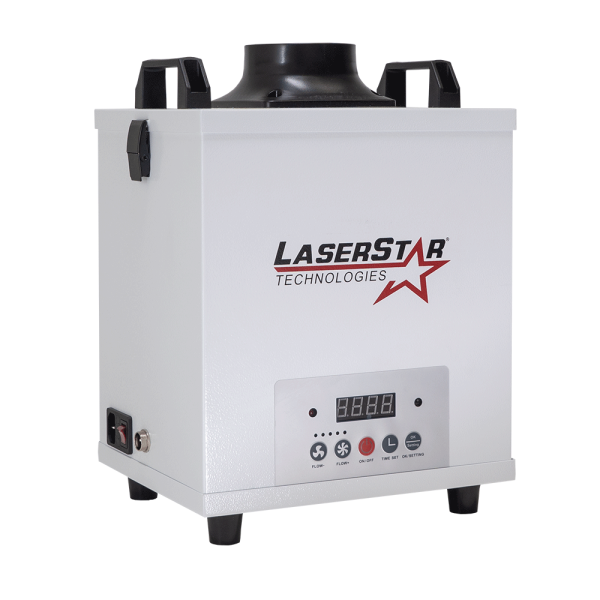

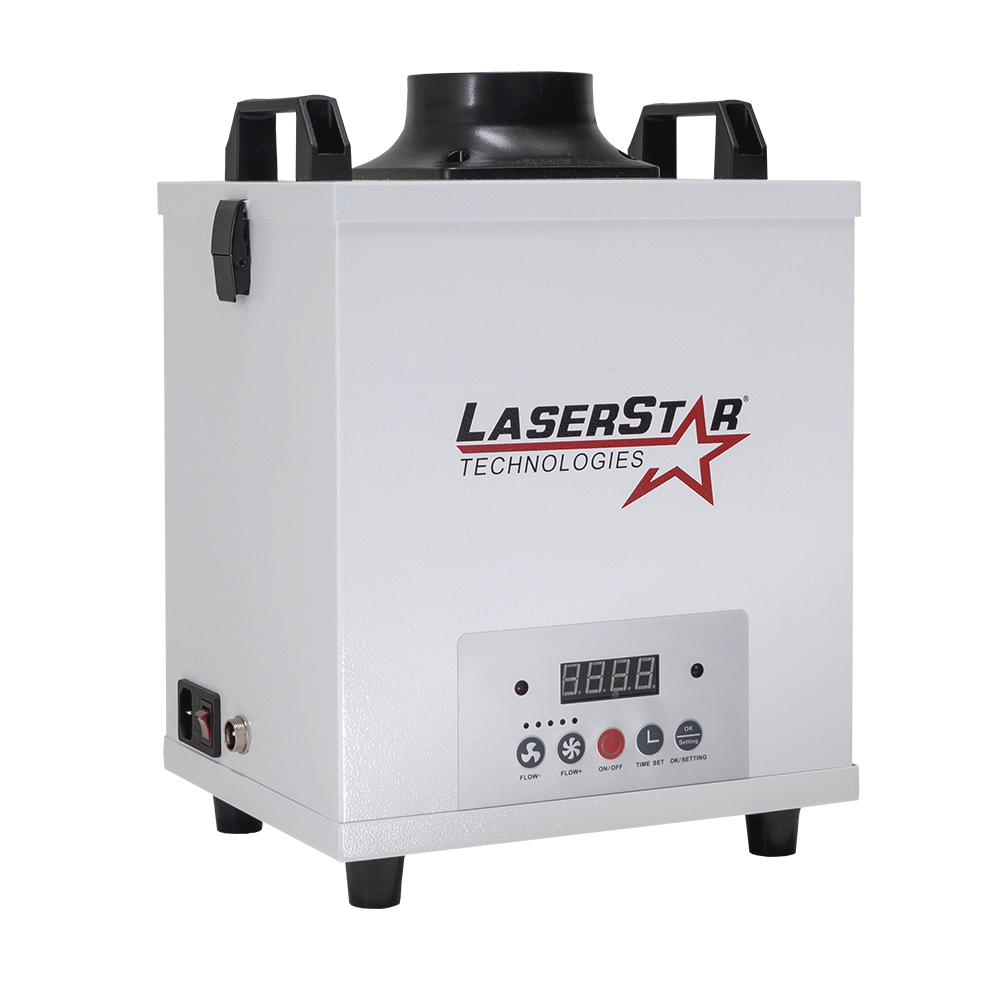

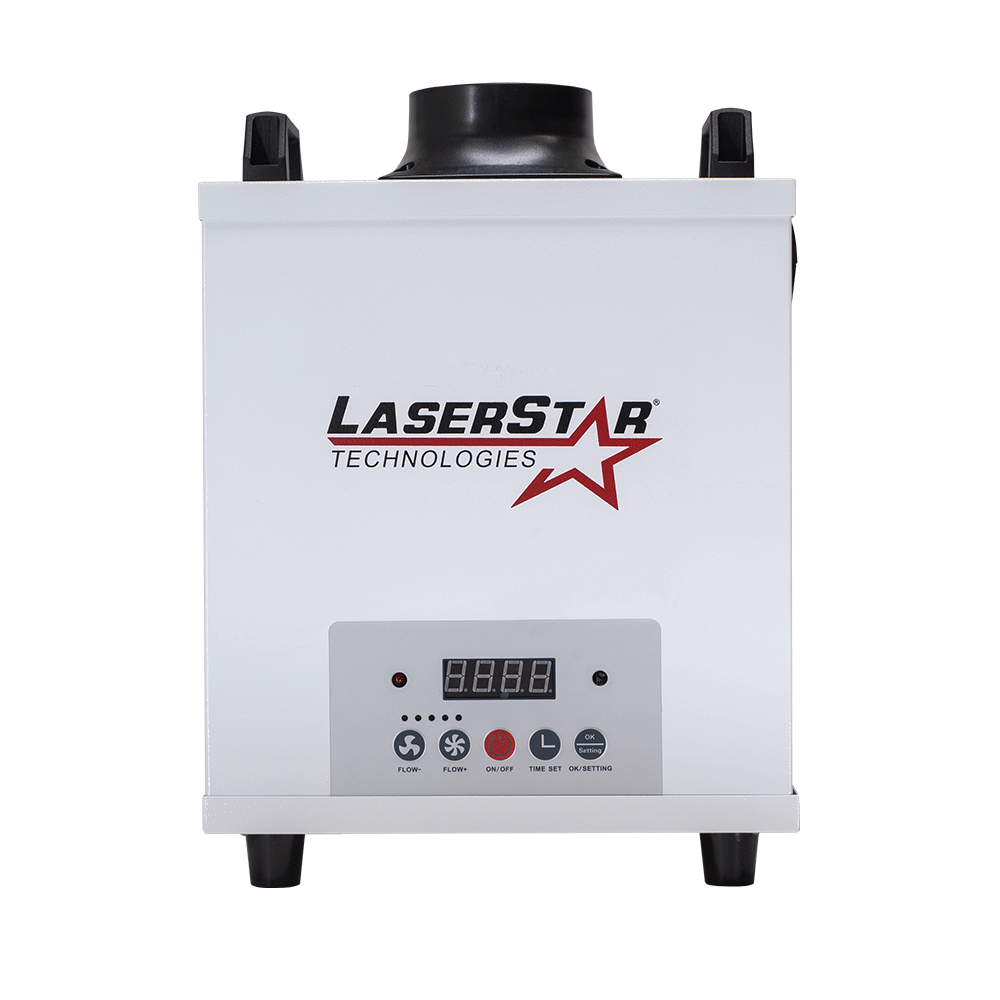

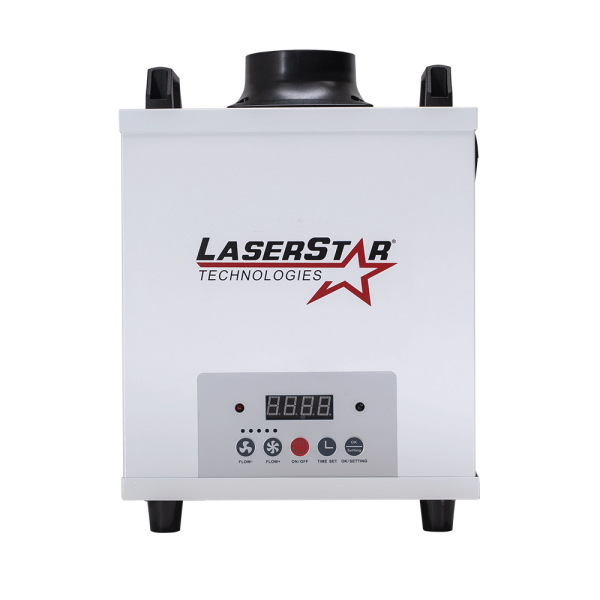

The E250 Fume Extractor is built around a brushless high-speed turbine capable of delivering airflow up to 250 m³/h. This strong suction is essential for capturing heavier particles and smoke before they disperse. The unit is engineered for continuous use in demanding industrial settings, ensuring reliability and consistent performance. LaserStar Technologies

To protect both operator and equipment, the E250 incorporates a collection bag / Hepa filter configuration composed of:

• A HEPA filter that captures 99.97% of fine particles, helping prevent dust from re-entering the environment and protecting optics and internal components. LaserStar Technologies

Noise control is also a design priority. Despite its powerful fan, the system runs at a sound level of less than 53 dB, making it suitable in workshops or laboratories where noise can be a nuisance. LaserStar Technologies

Design, Build & Compatibility

The E250 Fume Extractor is constructed with a compact yet robust form factor for long-term use. Its design supports both 120V or  230V supply circuits, making it suitable for multiple regional power configurations. LaserStar Technologies

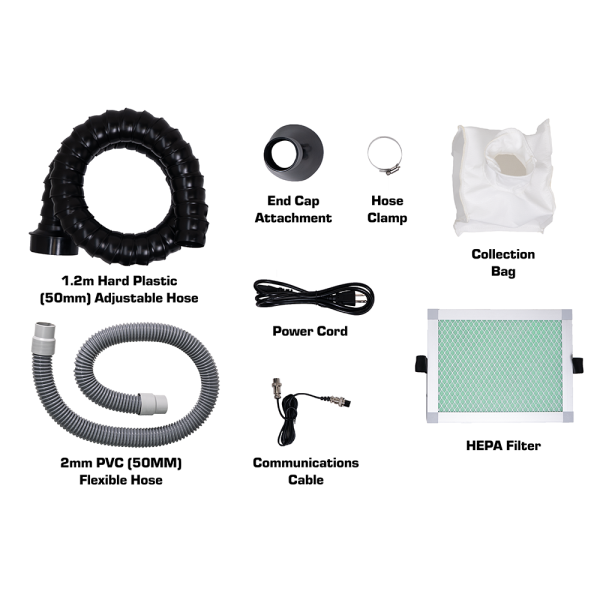

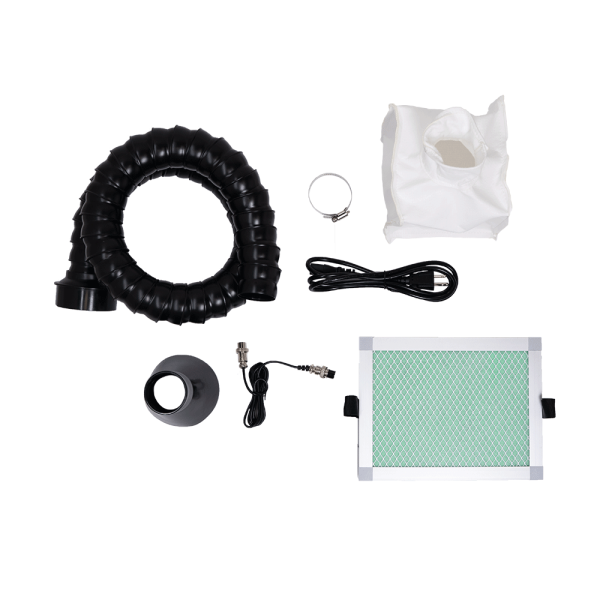

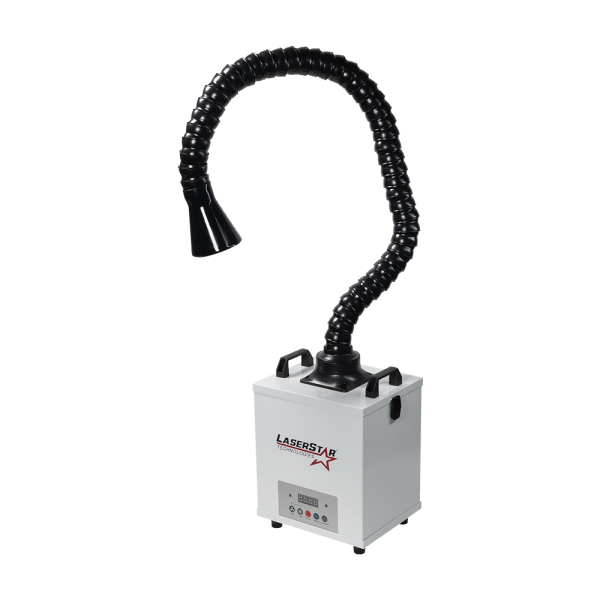

Versatility is further enhanced by the included hose kit—either a 2-meter PVC hose or flexible hard plastic hose—allowing users to route extraction to different workstations or laser enclosures. The system also includes the capability for ON/OFF communication interface, enabling the fume extractor to synchronize with laser operation (i.e., turn on when lasing starts). LaserStar Technologies

A disposable collection bag filters capture larger debris and particulates, such as metal chips or slugs, including recovery of precious metals. These bag filters simplify maintenance and reduce load on the HEPA filter stages. LaserStar Technologies

Applications & Use Cases

Because the E250 Fume Extractor combines heavy particle extraction and fine filtration, it is suitable across many laser-based operations:

• Laser Welding: Extracting smoke and particulates from metal weld zones

• Marking & Engraving: Managing fumes from ablation or removal of paint/coatings

• Cutting & Cleaning: Capturing debris during laser cutting or laser cleaning operations

• Precision Fabrication: Wherever airborne contamination must be controlled for optics or process quality

Beyond just fume extraction, using the E250 helps reduce particulate buildup inside laser enclosures, keep optics clean, capture cover gases, and maintain warranty compliance. LaserStar Technologies

Maintenance & Best Practices

To keep the E250 Fume Extractor performing at peak:

• Monitor airflow and suction—a drop can signal filter saturation or blockage

• Replace HEPA filters periodically to maintain effective filtration

• Change bag filter regularly to prevent clogging of downstream filters

• Check hose integrity and connections to avoid leaks or backflow

• Use synchronization so the unit runs only during laser operation, saving energy and prolonging filter life

By adhering to these practices, users can ensure cleaner air, extended system life, and more consistent performance from their laser environment.
