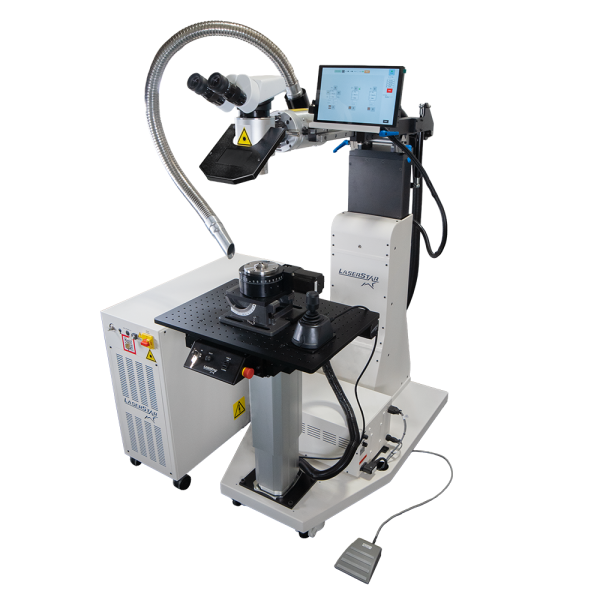

8803 FiberStar Industrial CNC Open Welding Workstation with MotionFX® (150W – 600W)

Series
Part# 516-883
0 out of 5

CALL FOR QUOTE

Leasing Financing not available for parts & accessories

The CNC Welding Workstation 8803 Series is a cutting-edge, joystick-controlled 3-axis laser welding system equipped with LaserStar’s MotionFX G-code programming software. Its open workspace design makes it ideal for a variety of applications, including plastic injection mold repair, die and tooling restoration, intricate electronic component assembly, high-precision industrial welding, pressure-sensitive hermetic sealing, and more.

One of the key advantages of the CNC Welding Workstation 8803 Series is its ability to generate minimal heat at the weld point, allowing users to weld as close as <0.025mm to complex, heat-sensitive components while maintaining exceptional pulse stability of +/- 1%.

Features:

  • Advanced, High-Precision Design
  • 3-Axis Coordinated Motion for Accuracy
  • Manual & CNC Programming Modes
  • CW & Pulse Laser Output Options
  • Available in 150W, 300W, 450W & 600W Power Levels

Experience superior welding precision and efficiency with the CNC Welding Workstation 8803 Series, designed for industrial applications that demand accuracy and reliability.

This item ships separately by freight and requires a custom shipping charge. This policy does not apply to spare parts & accessories under 10lbs/4.5kg.

Description

CNC Welding Workstation 8803 Series is a state-of-the-art, joystick-controlled, three-axis laser welding system designed to provide exceptional precision, versatility, and reliability for a wide range of industrial applications. Built with LaserStar’s advanced MotionFX G-code programming software, this system delivers unparalleled control over laser welding processes, enabling operators to achieve precise, consistent, and high-quality welds on even the most intricate components. Its open workspace design makes it ideal for applications that demand accessibility, precision, and adaptability, including plastic injection molds, dies, tooling repair, high-precision industrial assemblies, complex electronic components, and pressure-sensitive hermetic laser sealing.

One of the defining advantages of the CNC Welding Workstation 8803 Series is its ability to minimize heat generation at the weld point. This capability allows operators to perform highly accurate welds less than 0.025 mm from delicate, heat-sensitive parts without compromising the integrity of surrounding materials. The system also maintains an unparalleled pulse stability of ±1%, ensuring that each weld is consistent and reliable across complex geometries and challenging materials. This combination of precision, stability, and minimal thermal impact makes the CNC Welding Workstation 8803 Series an essential tool for industries that require high accuracy and fine detail.

The workstation is equipped with a robust work table featuring Z-axis adjustment, capable of supporting components up to 200 lbs (91 kg). This ensures that even larger assemblies can be welded securely and accurately. The integrated MotionFX® CNC X/Y/Z system provides high-speed, precise movement across all three axes, allowing for intricate weld patterns and complex repair work. Operators can select between manual, semi-automatic, and fully automatic modes, providing flexibility for both experienced technicians and training environments.

The CNC Welding Workstation 8803 Series

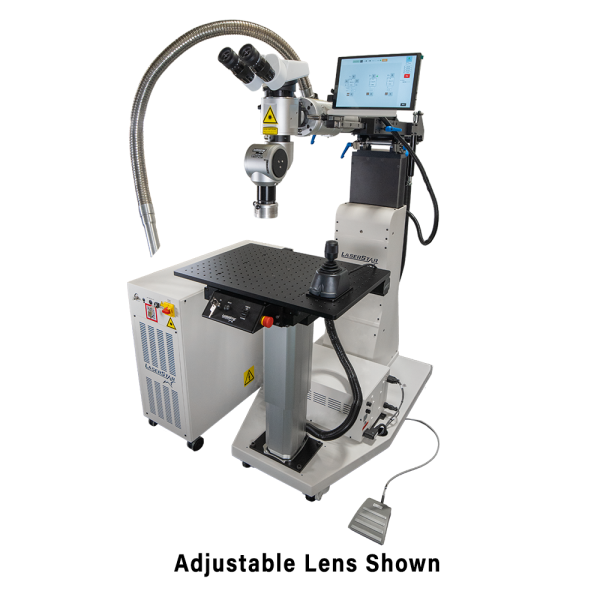

also features teach-mode functionality, enabling operators to program repeatable weld paths efficiently. The programmable touchscreen display and joystick with fire-button control logic provide intuitive control, allowing for rapid adjustments and smooth operation. High-accuracy X/Y/Z axis speed control ensures that every weld meets stringent precision requirements, while optional accessories such as a rotary device, tilting optical beam path head, and telescoping laser rail assembly further enhance the system’s flexibility and adaptability.

Integration with a Windows-based PC running MotionFX™ software offers a complete programming and monitoring platform. This software allows operators to create, simulate, and execute complex weld programs with confidence, improving productivity and reducing errors. Whether performing small-scale precision repairs or large industrial welds, the CNC Welding Workstation 8803 Series provides unmatched control, repeatability, and performance.

Portability is another advantage of the CNC Welding Workstation 8803 Series. The joystick-controlled interface, combined with a well-designed ergonomic layout, allows operators to maneuver components easily and access the work area efficiently. This design reduces operator fatigue and improves overall workflow, making the workstation suitable for extended use in demanding industrial environments.

In conclusion, the CNC Welding Workstation 8803 Series is a cutting-edge laser welding solution that combines precision, reliability, and versatility in a single platform. Its advanced MotionFX software, joystick control, multi-axis system, and open workspace design make it ideal for a wide range of applications, from high-precision electronic components to complex mold and tooling repairs. With minimal heat generation, unparalleled pulse stability, and flexible operation modes, this workstation provides operators with the tools they need to perform accurate, repeatable, and high-quality laser welds.

By investing in the CNC Welding Workstation 8803 Series, industrial operators and technicians gain access to a reliable, high-performance system capable of meeting the demanding requirements of modern manufacturing, repair, and assembly processes. Its combination of innovative features, ergonomic design, and advanced software integration ensures that every welding task can be executed with precision, efficiency, and confidence.

Laser Source Fiber Engine
Operator Mode Pulse or Continuous Wave (CW)
Output & Peak Power 150W (1.5kW) / 300W (3.0kW)
450W (4.5kW) / 600W (6.0kW)
Pulse Frequency 0.5 – 50 Hz
Beam Diameter >75 microns
X-Y Axis, Table Lift Column Travel 250mm x 250mm x 200mm
Max Load 200 lbs (91 kg)
XY Resolution (μm) 12.5 microns
Accuracy (Linear Axis Only) +/- (25 microns) per 25mm of travel
Speed (mm/sec) 15mm/sec
Software CNC MotionFX® w/ Teach-Mode & Manual
Joystick Direct Axis Control, Fire Button
Cooling Capacity Internal Forced Air / 24 hr Continuous Run Time
Shielding Gas/Compress Air Dual – Integrated “Soft Flow” Nozzle
Weight Approx. 260 lbs./118KG
Supply Circuit 208-240 V, 50/60Hz, Single Phase
Laser Safety Compliance FDA (CDRH), CSA, CE

Additional information

Series

8803
